CRUSHER - WHOLE PALLET CRUSHERS
clutch claw and gear box.
clutch claw and gear box.
absorbers which allows
the WPC to remain stable
(not moving) even when
the WPC is fed by a fork
lift truck dumping whole
pallets into the crusher
cabinet.
claw design comes in
two versions.
Stationary claws:
Fixet onto the cabinet as
counter claws to the rotary
claw shaft. Each stationary
claw, made of Hardox,
is welded onto both sides
of the rotary claw shaft.
hopper. The hopper is
typically loaded by a fork lift
truck, a lifting device, or an
inclined belt conveyor.
on each end of the crusher
claw(s). Absorbing/
eliminating all axial forces
between claw(s) and gear
box.
is manufactured in 20 mm
stainless steel plate
AISI 304.
mild steel with hard
chrome cover on claw tips.
Available dimensions of
claw(s) for model A & B:
assembly. Between gear
box and crusher claw, a
Heavy Duty safety clutch
prevents damage to the
gear box, example only, in
case a large foreign (metal)
object by mistake is thrown
into the Whole Pallet
Crusher.
WPC 2000-SINGLE & WPC 2000-TWIN

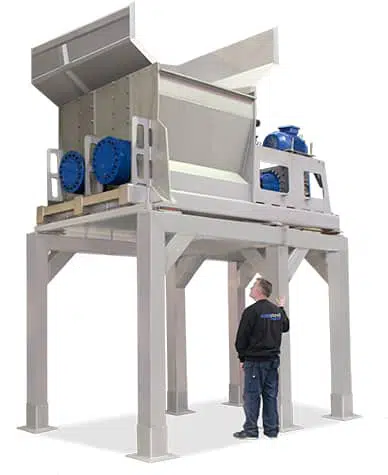

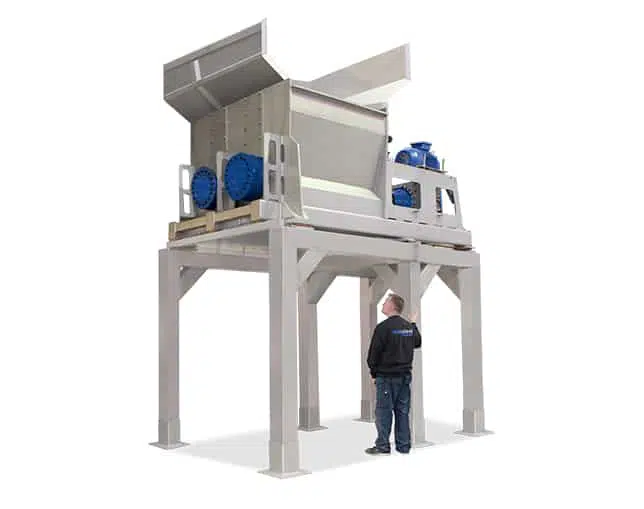

The scansteel foodtech Whole Pallet Crusher, WPC, range is probably among the most comprehensive available. The entire cabinet and frame structure is manufactured in stainless steel AISI 304. The WPC is available with single or double rotary claw shafts. The infeed width is available in either 1500 mm or 2000 mm. It’s Heavy Duty design is performed with main bearing positioned on each side of the end of the claws shaft thus eliminating all axial forces between the claws and gearbox.
scansteel foodtech manufactures a range of Whole Pallet Crushers with either single claw or double claws with a standard infeed width of 2000 mm. A Whole Pallet Crusher is capable of crushing a pallet full of frozen together blocks and as such appears as one entire frozen block of, example only, 1200 x 800 x 1500 mm.
- WPC 2000-Single
- WPC 2000-Twin
Available Dimensions of Claw(s):
Thickness of rotary claw(s), on claw tip:
Thickness of rotary claw(s):
Distance between stationary claw(s):
A
65 mm
60 mm
80 mm
B
45 mm
40 mm
60 mm
FEATURES
• Constructed in 20 mm stainless steel plate AISI 304.
• Infeed hopper and discharge frame/hopper manufactured according to requirements/demands.
• Crusher claw(s) made of hardened material.
• Designed with few spare and wear parts leading to low costs of operation and maintenance.
• Frozen block dimensions: 1000 x 1000 x 1000 mm.
• WPC 2000-Single, 10,000 – 20,000 kg/hour Power/motor 75 kW
• WPC 2000-Twin, 20,000 – 60,000 kg/hour Power/motor 2 x 75 kW – 2 x 110 kW
• Bearing on each end of crusher claw.

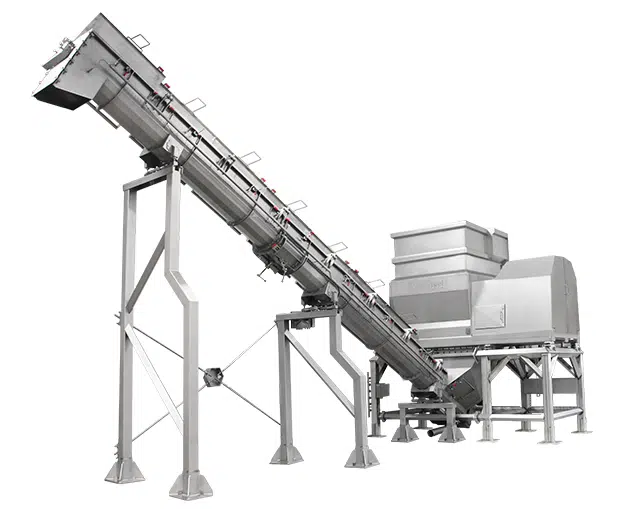

Whole Pallet Crusher, WPC 2000 perfectly integrates with complete pet food processing lines. WPC 2000 shown with a scansteel foodtech® inclined screw conveyor with built-in buffer capacity for a crushed whole pallet of meat raw materials.
The claws for the WPC 2000 can optionally be delivered with claws of mirror polished stainless steel.
Buffer hopper with mounted weighing cells for batch control and automatic start/stop of machinery.
View of the belt transmission.
Top view looking at the inside/infeed section where the whole pallets of meat raw material will be fed into the WPC 2000.
