QuadroCut(Vac) 225 Series

The scansteel foodtech® QuadroCut(Vac) 225 Series is highly reliable, high- and consistently performing emulsifiers designed for uniform product quality. The functionality of the machines ensures low running costs just as safe and easy operation.

QuandroCut 225

scansteel foodtech® QuadroCut 225

scansteel foodtech® QuadroCutVac 225

scansteel foodtech® QuadroCutVac 225 – TemBi

EMULSIFIER: QuadroCut 225
The scansteel foodtech® QuadroCut 225 emulsifier is the Heavy Duty “Work Horse” among emulsifiers. The scansteel foodtech® QuadroCut 225 is designed for Heavy Duty applications with heavy duty construction from the ground up. The robust frame is designed to easily withstand the forces from electrical motors from 90 kW – 200 kW. All frame and cabinet work is manufactured in stainless steel AISI 304.
QuandroCut 225
QuandroCut 225
EMULSIFIER: QuadroCutVac 225

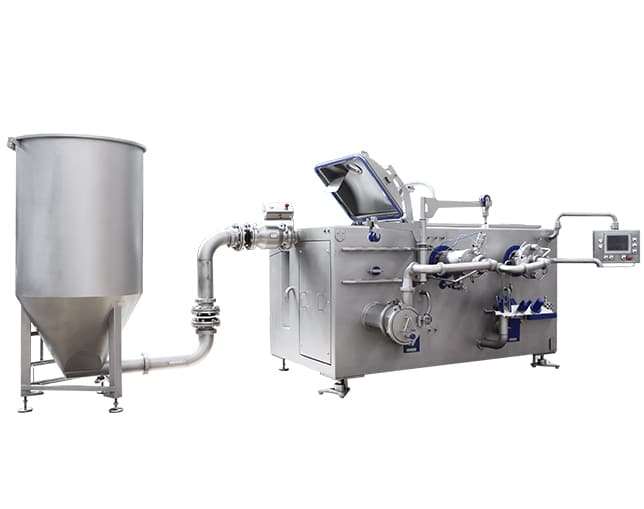

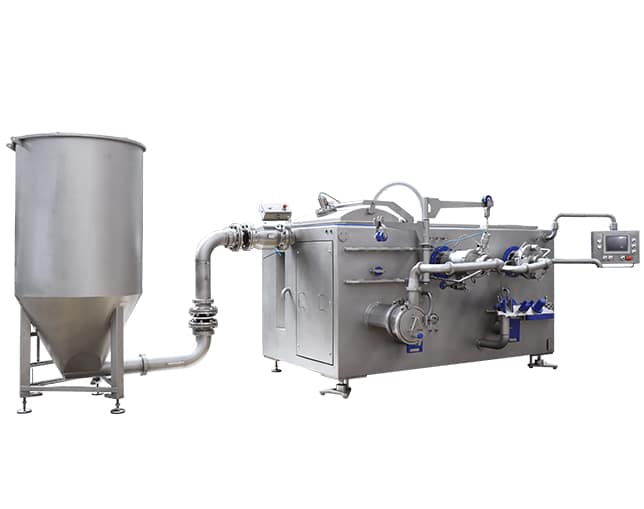

The scansteel foodtech® QuadroCutVac 225 is the ultimate solution for production of high quality emulsion, fully inline and continuous vacuumizing for removal of air in the final emulsion. Shown with 2500 liter infeed buffer hopper. The QuadroCutVac 225 is further shown with open lid showcasing the easy cleaning and inspection access for the vacuum section of the QuadroCutVac 225.
QuandroCut 225
QuandroCut 225
QuandroCut 225
QuandroCut 225
QuadroCut06
QuandroCut07
QuandroCut08
scansteel foodtech emulsifier QuadroCut
QuandroCutvac-02
QuandroCutvac-04
QuandroCutvac-05
QuandroCutvac-03
QuandroCutVac-225-tembi
QuandroCutVac-225-tembi-01
QuandroCutVac-225-tembi-02
Download our brochure
QuadroCut 225 - English version.pdf 294.19KB

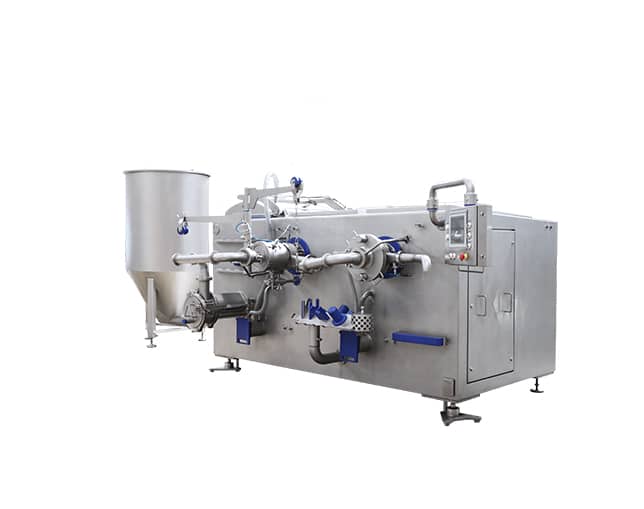

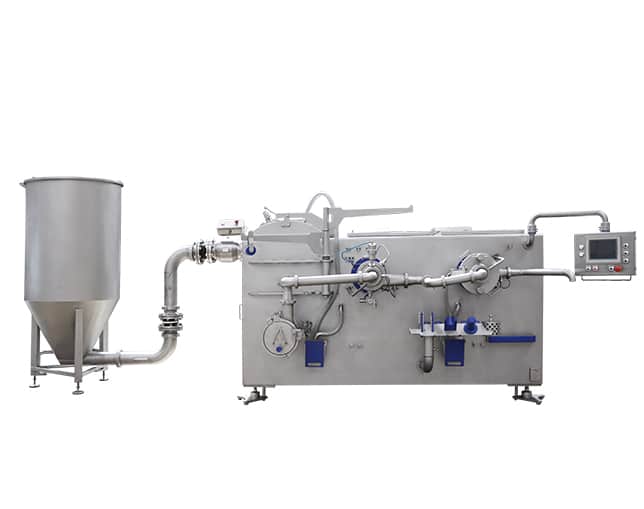

EMULSIFIER: QuadroCutVac 225 - TemBi
Ultra-Flexible Knife System Set-up
The scansteel foodtech® knife set cassettes have been designed so they can be assembled at the meat
processors’ workshop by trained technicians. As such, the only thing the machine operators mustdo is
to replace the knife cassette at agreed intervals.
Knife set Combinations:


QuadroCut 4 knives – 3 hole plates
TripleCut 3 knives – 2 hole plates
DoubleCut 2 knives – 1 hole plate
Technical Specifications
Motor size: Standard range: 90 kW – 200 kW.
Emulsion Production Capacity: 2000 – 25,000 kg/hour.
Electrical Controls: Allen Bradley operator panel and PLC. Siemens operator panel and PLC.
Emulsifier Knife Set Speed: Frequency controlled speed of 1800 – 3000 rpm. Typically, the most important speed control is given by the infeed pump speed which can be pre-programmed in the control panel of the QuadroCut 225 / PentaCut 225 emulsifier.
Main Bearing:  Oil filled bearing. Oil cooled.
