GRINDER – DOUBLE WORM: COMBIGRIND CG 300 & CG 300 Heavy Duty

scansteel foodtech

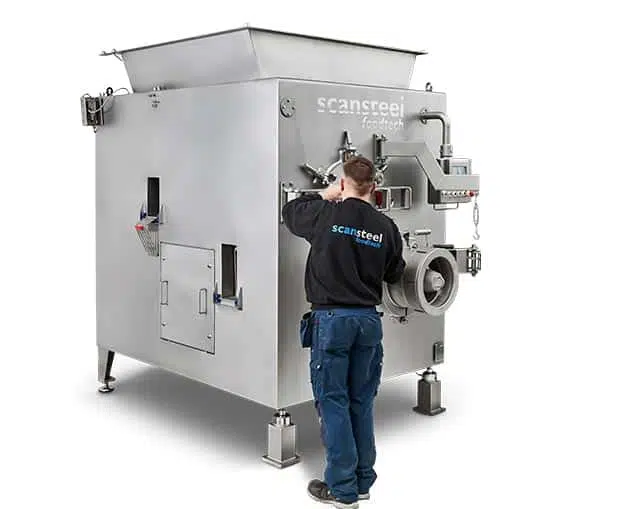

CombiGrind CG 300

scansteel foodtech® CombiGrind double worm/auger grinder

scansteel foodtech® CombiGrind worm/auger/screw

High performance grinding
within a wide capacity
range is achieved through
a low tolerance rigid design
with smoothly shaped
worms, hand forged,
welded and ground
superfine with the smooth
surfaces of the high
precision CNC milled lining.

The electrical panel is
embedded into the
machine cabinet. The
electricalpanel can swing
away in order to grant full
access to the interior of the
machine for maintenance.

A prime example of
scansteel foodtech’s
hygienic design is given
by the two hygienic zones
– one positioned between
each of the worms and
one between the gear
boxes.

inside view of scansteel foodtech® CombiGrind

Fresh soft meats and fats
as well as tempered or
hard frozen blocks are
effectively processed
together or separately
without changing any
mechanical components
due to the ingenious design
of hopper, transfer area
between the worms
combined with effective
fixation of the frozenblocks.

Operator control with easy
to understand push button
operation of start - stop
and emergency. Pre-set
of worm speeds and
programming functions
with logically designed
grahics on the touch panel.

Removal of breaker worm
for CombiGrind CG 300
and CG 300 Heavy Duty

This truly unique and universal grinder provides first-class grinding results, fully comparable with and even surpassing those of conventionally specialized grinders for fresh, tempered, or deep-frozen blocks without changing anything but the incoming raw material to be ground, coarsely or finely, as required.

scanControl System

scansteel foodtech® CombiGrind 300/300 Heavy Duty are equipped with our scanControl System. This system continuously monitors the frequency converters on the feeding/pre-grinding worm/auger and the grinding worm/auger for grinding section. If, for any reason, the grinding worm/auger is overloaded by the feeding/pre-grinding worm/auger, the scanControl System decreases the feeding speed until acceptable grinding conditions have been re-established. In extreme situations, the scanControl System actually reverses feeding/pre-grinding worm/auger.

Benefits of the CombiGrind 300/300 Heavy Duty

No smearing (NO fat out).
Excellent meat fat particle definition.
Perfect fine and coarse grinding of both fresh meat and frozen meat blocks.
Dual worm grinder with adjustable worm speed on BOTH feeding and grinding worm/auger.
Dual sanitation/cleaning zone on both feeding and grinding worm/auger.
CCR, Continuous Chip Removal System (Bone Chip removal system).
Grinding motors for frozen blocks from 45-90 kW motor.

The CombiGrind 300/300 Heavy Duty have high performance grinding within a wide capacity range which is achieved through a low-tolerance, rigid design with smoothly shaped worms, hand-forged, welded, and ground superfinely by skilled Danish craftsmen combined with the smooth surfaces of a high precision CNC milling lining. Minimum product stress provide ground end products with reduced fat separation during cooking and improved drying and curing abilities. Variable speed drives for both feeding and grinding worm provides a balanced and constant flow to the cutting set, single or double.

Fresh soft meats and fats as well as tempered or hard frozen blocks are efficiently processed together or separately without changing any mechanical components due to the ingenious design of hopper, transfer area between the worms/augers combined with efficient fixation of the frozen blocks. Narrow tolerances eliminate backwash, fines and smearing.
