MIXER PROGRAMME

Twin Shaft Mixer
Standard TSM Series

Twin Shaft Mixer Vacuum

Twin Shaft Mixer Vacuum

Optional mirror polished
paddle mixing wings.
Twin Shaft Mixer
Intermeshing, TSMI Series

Large hygienic space
for easy cleaning and
maintenance.

Twin Shaft Mixer Vacuum

Twin Shaft Mixer Vacuum
shown with steam nozzles

Twin Shaft Mixer Vacuum

Top view of mixer wings

Top view of mixer wings

scansteel foodtech A/S supplies a full range of Mixers for the global food processing industry as well as the global pet food industry. The scansteel foodtech® Mixer Programme will meet ALL your requirements to mixing. Our range goes from Single Shaft and Twin Shaft Mixers to Twin Shaft Mixers either with Vacuum or with Grinder unit with a wide range of optional extras such as, but not limited to: Heating and/or cooling functionality.

scansteel foodtech® Mixers – whether Standard TSM type or Intermeshing TSMI type –
are extremely versatile and meet almost any product application, you might require,
such as:

Sausage pre-blends/pre-mixes.
Hamburger and patty pre-blends.
Poultry nuggets – lean and extended recipes.
Pizza topping and dry sausage blends.
Meat standardization.
Ham tumbling and vacuumizing.
Heating / cooking / cooling.
Pet food pre-blends for wet as well as dry pet food applications.

Video of mixers

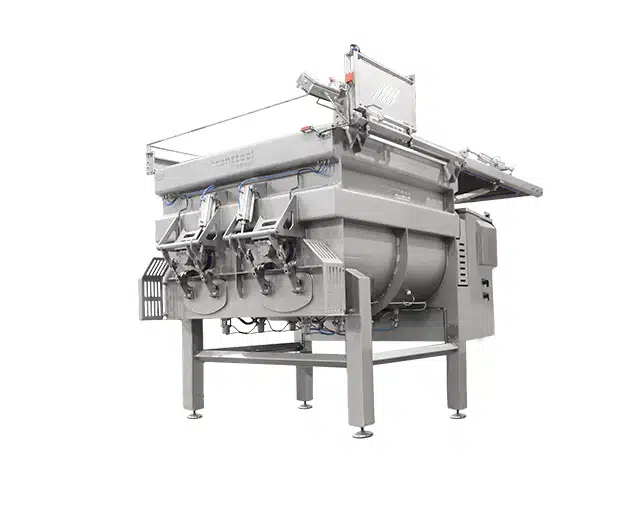

MIXERS: Side-by-side TSM(V)

Twin Shaft Mixers:
Twin Shaft Mixers Vacuum:

TSM – From 250 Litres – 6250 Litres
TSMV – From 250 Litres – 6250 Litres

The scansteel foodtech® Twin Shaft Mixers with Vacuum are ideal for mixing applications that require air evacuation prior to emulsifying, filling/stuffing, or forming. With cooling, it is also ideal for (heavy) extended products such as meat balls, luncheon meat, and patties. The unique mixing action with high peripheral wing speed gives superior protein extraction, uniform distribution of spices, additives and liquids, and provides efficient salt activation of the salt soluble meat proteins (protein extraction).

TSM(V) MIXER WING ROTATION

Two mixing wings positioned side by side at the same height from floor level. 250 Litres to 6250 Litres mixing container volumes. The square shaped mixing container contributes to scansteel foodtech’s very short mixing times, 2 units of frequency converters control the mixing wing speed (depending on the customer specifications). Please note that the scansteel foodtech TSM Mixers, as a standard, are equipped with 4 (four) mixing wing directions:

MIXERS: Intermeshing, TSMI(V)

Twin Shaft Mixers, Intermeshing:
Twin Shaft Mixers, Intermeshing Vacuum:

TSMI – From 200 Litres – 12,000 Litres
TSMIV – From 200 Litres – 12,000 Litres

The scansteel foodtech® Twin Shaft Mixers Intermeshing with Vacuum are ideal for mixing applications that require air evacuation prior to emulsifying, filling/stuffing, or forming. With cooling, it is also ideal for (heavy) extended products such as meat balls, luncheon meat, and patties. The unique mixing action with high peripheral wing speed gives superior protein extraction, uniform distribution of spices, additives and liquids, and provides efficient salt activation of the salt soluble meat proteins (protein extraction).

TSMI(V) MIXER WING ROTATION

Two mixing wings positioned at two different heights from floor level. 250 Litres to 7500 Litres mixing container volumes. The square shaped mixing container contributes to scansteel foodtech’s very short mixing times. 1 unit frequency converter controls the mixing wing speed (depending on the customer specifications). Please note that the scansteel foodtech TSMI Intermeshing Mixer is equipped with 2 (two) mixing wing directions: For gentle mixing to intensive stirring. Two outlet gates for fast discharge or, alternatively, one large centre discharge gate. Vacuum version (V) for control of pre-mix density, curing/tumbling, and protein extraction.
