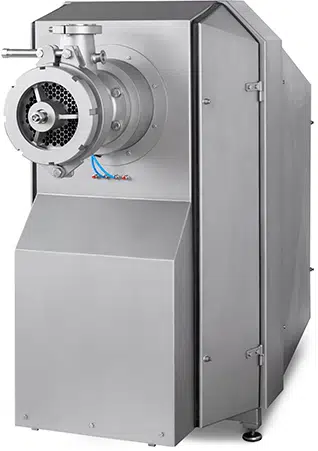

EMULSIFIER: Heavy Duty MC 250 & MC 300
be coming soon..
gear box dramatically
increases life time of
gear box.
injection system.
injection system.
injection system.
injection system.
injection system.
steam injection system.
be coming soon..
be coming soon..
The Industry “Work Horse”
– scansteel foodtech® Emulsifier Does It All!
feeding/two steps feeding system:
• Stand-alone feeding pump, feeding the lining/housing of the MC 250 & MC 300.
• Feeding/crushing screw, feeding the knife set.
The feeding pump with its own feeding screw with block breaking/bone breaking abilities force-feeds
the scansteel foodtech® MC 250 & MC 300 emulsifier lining/housing. Entering the lining/housing, the feeding screw of the MC 250 & MC 300 further force-feeds/grinds any particles, being frozen meat raw materials and/or bones. The feeding screw with its recessed 3-bladed knife distributes any products continuously towards the first hole plate securing optimal cutting/emulsifying effect.
Designed to emulsify/particle reduce,
examples only, products such as:
• Fresh meat raw material.
• Chicken bones, pork bones, beef bones.
• Frozen and fresh combination of above.
Direct Steam Injection System:
to secure even distribution of steam and subsequently final temperature.
MicroCutter Series
MicroCutter MC 250 – Pump fed
MicroCutter MC 300 – Hopper fed
MicroCutter MC 300 – Screw hopper fed
Knife Set:
1 hole plate =
2 hole plates =
3 hole plates =
1 (one) cutting edge against hole plate.
3 (three) cutting edges against hole plates.
5 (five) cutting edges against hole plates. With the wide selection of knives and hole plates, the scansteel foodtech MC 250 & MC 300 emulsifiers ensure you get the final emulsion/final product quality you require.
Technical Specifications
Capacity (approx.)
Power Motor:
Length:
Width:
Height:
Weight:
Model: MC 250
4000 – 12,000 kg/hour
90-200 kW
2300 mm
1000 mm
1700 mm
1,500 kg
Model: MC 300
6000 – 18,000 kg/hour
90-200 kW
2300 mm
1000 mm
1700 mm
2,000 kg
